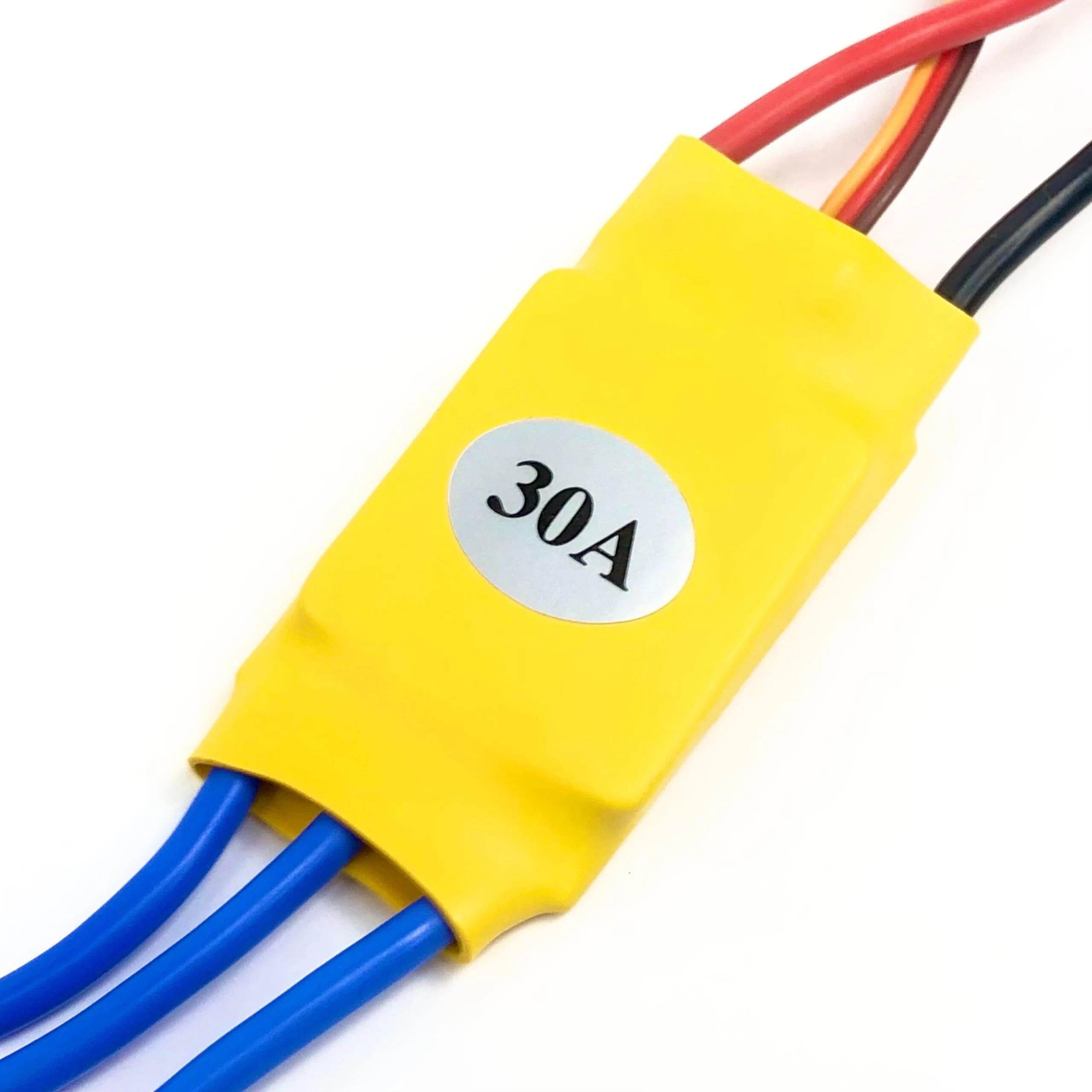

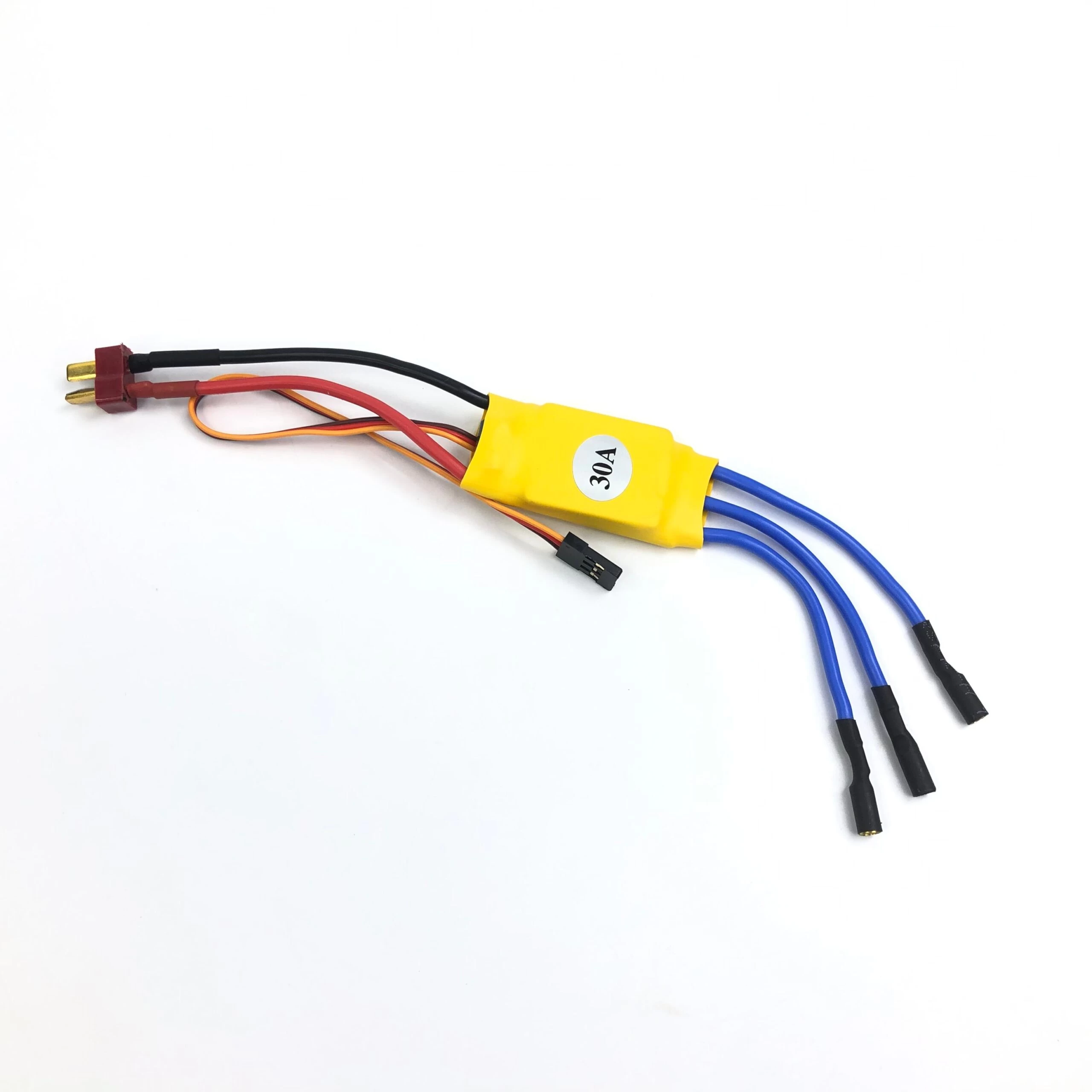

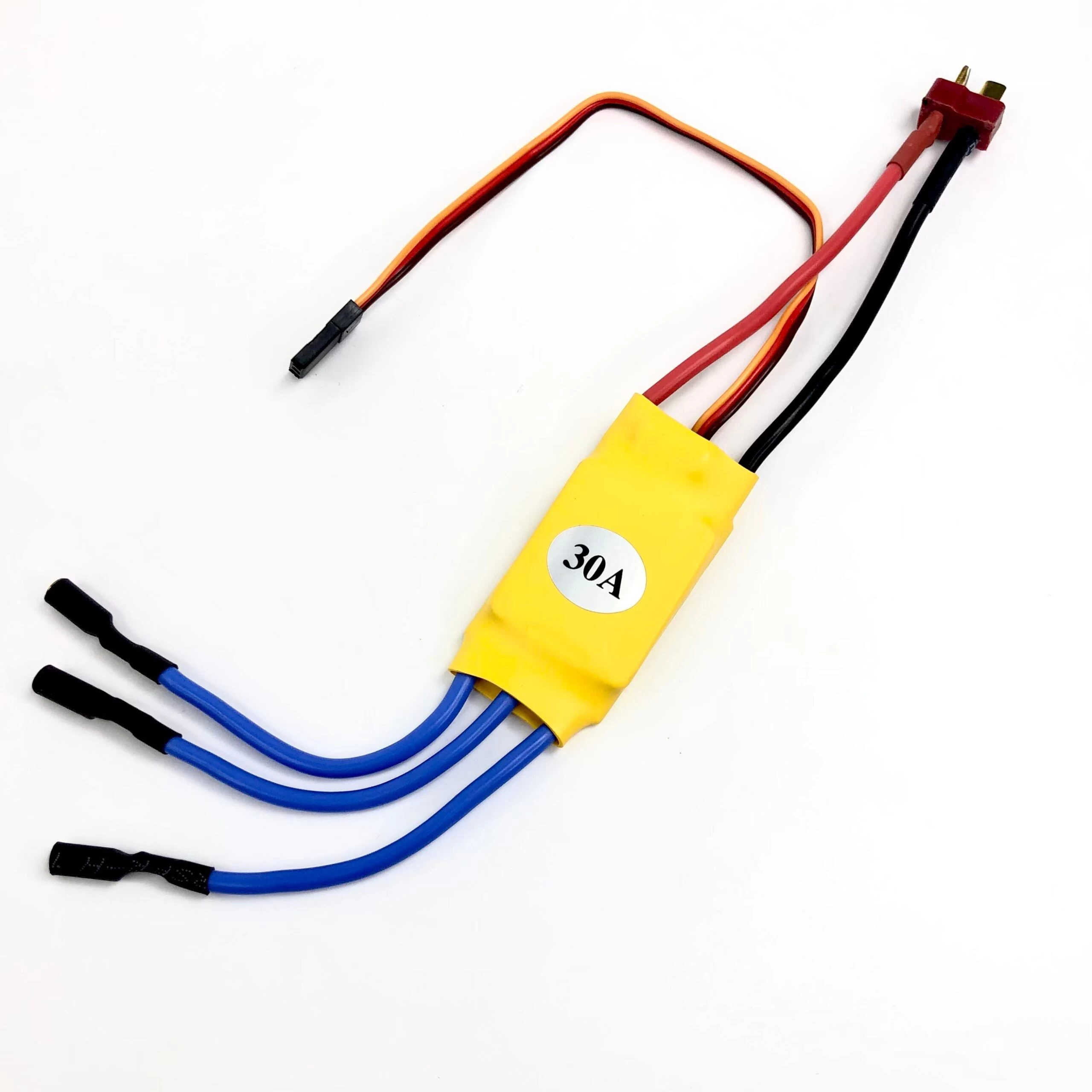

This 30A ESC electronic speed controller is specifically made for quadcopters and multi-rotors and provides faster and better motor speed control giving better flight performance compared to other available ESCs. This 30A ESC can drive motors which consume up to 30A current. It works on 2S-3S LiPo batteries. It has an onboard BEC which provides regulated 5V(2A max draw) to power the flight controller and other onboard modules. 30A ESC can be used to control our brushless motors with a 2S-3S LiPo (make sure the motor doesn’t draw more than 30A). This particular 30A ESC is recommended with A2212 brushless motor (1000kv, 1400kv, 2200kv).
Specification :
1.Current: 30A
2.BEC: 3A
3.PWM: N/A Li-Poly: 2-3 Ni-Mh/Ni-CD: 4-10 Ni-Mh
4.Li-Poly: 2-3
5.Ni-Mh/Ni-CD: 4-10 Ni-Mh
6.Constant Current: 30A Max 40A<10s
7.Li-Poly 2-3 cells; Ni-MH 4-10 cells
8.Li-Poly 2-3 CELLS;
9.Ni-MH 4-10 CELLS Auto-Detect
10.Break On/Off
11.Auto Low BATTERY Slow down at 3.0V/cell Lipo, cut off at 2.9V/cell lipo
