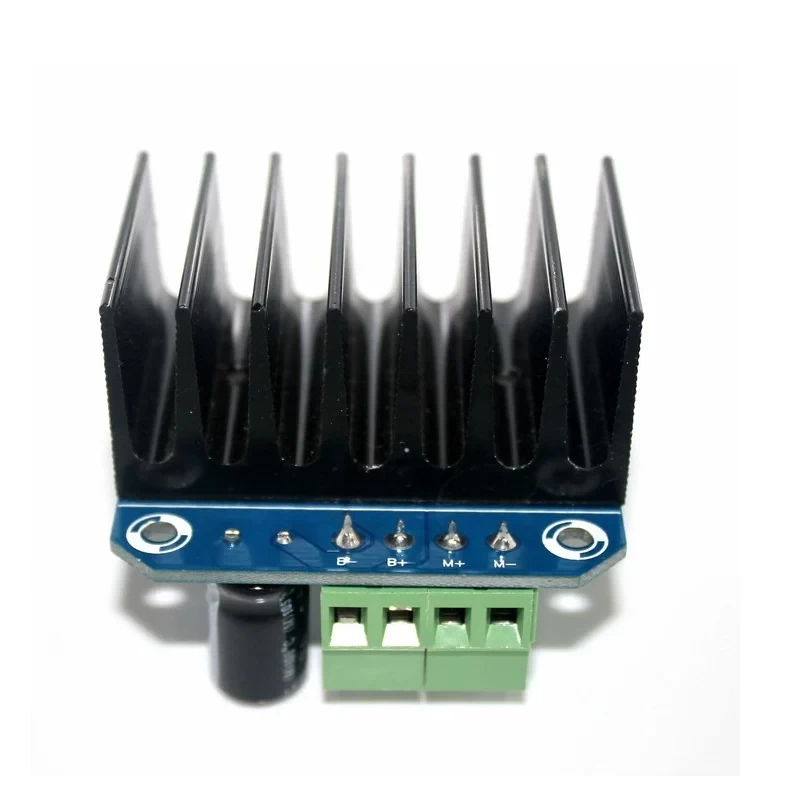

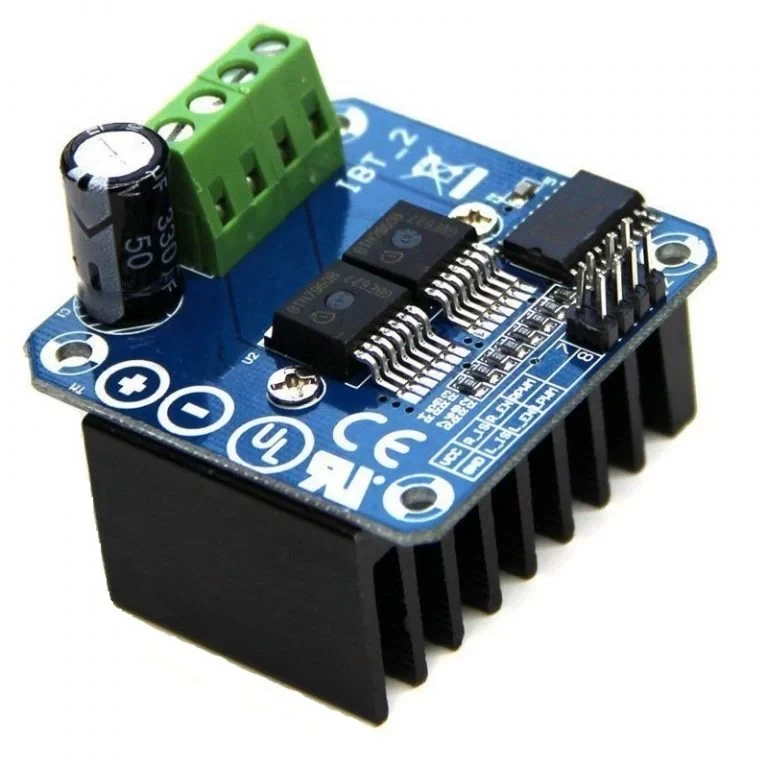

Double BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module

The Double BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module is; a fully integrated high current H bridge for motor drive applications using the BTS7960 high current half bridge. the BTS7960 is part of the NovalithICTM family. This contains one p-channel high-side MOSFET and one n-channel low-side MOSFET; with an integrated driver IC in one package. Due to the p-channel high-side switch; the need for a charge pump is eliminated thus minimizing EMI. Interfacing to a microcontroller is made easy by the integrated driver IC which features logic level inputs; diagnosis with current sense, slew rate adjustment; dead time generation, and protection against overtemperature, overvoltage, under voltage; overcurrent, and short circuit. The Double BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module provides; a cost-optimized solution for protected high current PWM motor drives with very low board space consumption.

Features :

1. Input voltage(V): 6 – 27.
2. Maximum current(A): 43.
3. Input level(V): 3.3 – 5.
4. Duty cycle: 0 – 100%.
5. Path resistance: 16 mΩ at 25°C.
6. Low quiescent current: 7 µA at 25°C.

Package Includes :

1 x Double BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module.
