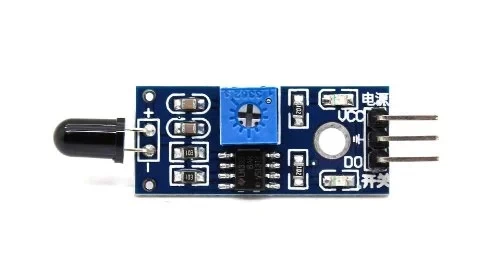

Flame Sensor infrared Receiver Module

This tiny Flame sensor infrared receiver module ignition source detection module is Arduino compatible and can be used to detect flame or wavelength of the light source within 760nm~1100nm also useful for Lighter flame detection at a distance is 80 cm. The greater the flame, the farther the test distance. It has a Detect angle of  60° and is very sensitive to flame spectrum. It produces the one-channel output signal at the D0 terminal for further processing like an alarm system or any switching system. The sensitivity is adjustable with the help of a blue potentiometer given on the board.

Features :

1. Output Channel: 1
2. Power Supply: 3.3/5V
3. Built-in potentiometer for sensitivity control.
4. Onboard signal output indication, The output effective signal is high, at the same time the indicator lights up, the output signal can directly connect to the microcontroller IO.
5. The detection angle is about 60 degrees, and the flame spectrum is especially sensitive.
6.  The flame of the most sensitive sensors flame, the regular light is also a response, generally used for fire alarm purposes.


Package Includes :

1 x Flame sensor infrared receiver module
