Quadcopter DIY Drone Kit for Beginners

Fly into the exciting world of drones with our Quadcopter DIY Drone Combo Kit. This full kit is designed to spark your interest and passion for crafting.

Designed for beginners and DIY enthusiasts, this RC drone-making kit includes all of the necessary components to build your own copter.

Explanation of each component included in the DIY Drone Kit for Beginners in more detail:

F450 Frame:

The F450 Frame is the main frame. It has a 450mm diameter and is strong yet lightweight, similar to the DJI frame. This frame was designed to withstand several crashes while maintaining a decent balance of strength and weight. The optimized frame design enables modification and extension with autopilot systems and DJI devices.

1000Kv BLDC Motor:

This Quadcopter kit comprises four 1000Kv brushless DC (BLDC) motors. BLDC motors are commonly used in drones because of their high efficiency, low maintenance requirements, and superior power-to-weight ratio. The "Kv" rating denotes the motor's speed constant or the rotational speed per volt applied.

ESC:

The kit provides four Electronic Speed Controllers (ESCs), one for each motor. ESCs are essential for controlling the speed and direction of the motors. These brushless ESCs are pre-programmed from the factory, ensuring convenience and ease of use.

2-3 Cell Battery Charger:

This is a battery charger that is compatible with 2-3 cell Lithium Polymer (LiPo) batteries. LiPo batteries are commonly used in drones due to their high energy density and lightweight properties.

2200 mAh Lipo Battery:

The kit comes with a 2200mAh Lithium Polymer (LiPo) battery. LiPo batteries are commonly used in drones as they provide a high energy output for their weight, allowing for longer flight times.

Fly Sky FS-CT6B 6ch 2.4GHz Transmitter & Receiver:

The Fly Sky FS-CT6B is a 6-channel 2.4GHz transmitter and receiver system. The transmitter is used to control the quadcopter, and the receiver receives the signals from the transmitter and relays them to the flight controller.

APM 2.8 Flight Controller (Without Compass):

The Flight Controller is the brain of the quadcopter. It processes data from various sensors, such as gyroscopes and accelerometers, to stabilize the flight and maintain its orientation during flight. The APM 2.8 is a popular flight controller used in DIY drone projects.

XT60 Male Connector:

The XT60 Male Connector is used for connecting the LiPo battery to the power distribution board of the quadcopter.

Propeller (2CW, 2CCW):

The kit includes four propellers, with two clockwise (CW) and two counterclockwise (CCW) rotation propellers. The correct combination of CW and CCW propellers is essential for it to achieve stable flight.

These components, when assembled together, form the basic structure and control system of the quadcopter, allowing you to build and customize your own drone for various applications.

Note: The package weighs 1500 grams (approx) and Dimensions: 21 x 15 x 9cms (approx)

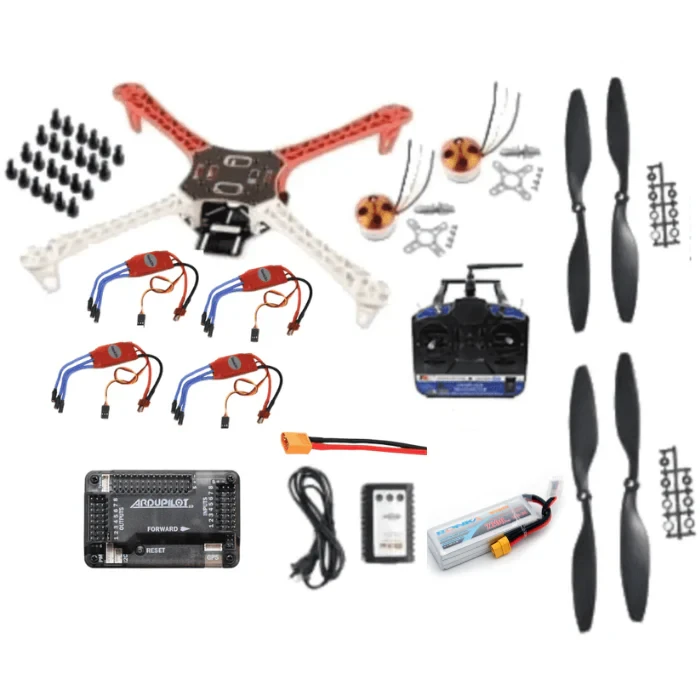

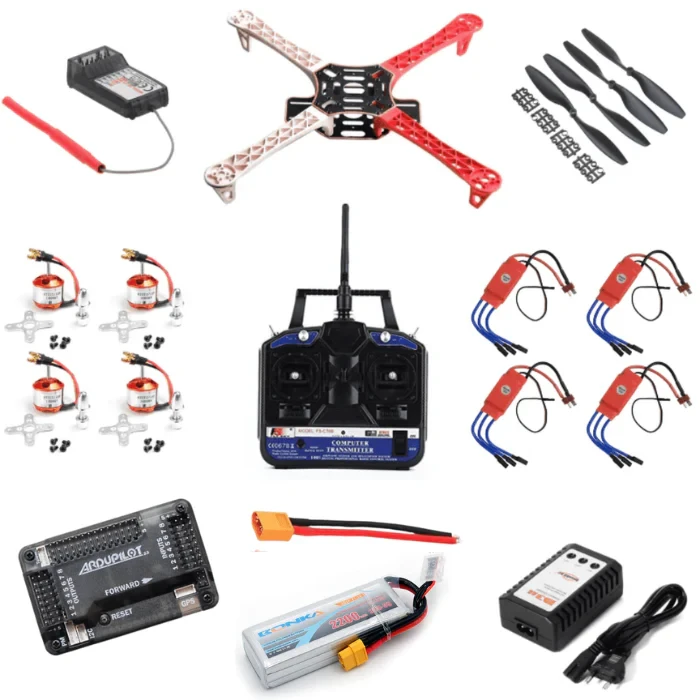

Package includes:

• 1 x F450 Frame
• 4 x 1000kv BLDC Motor
• 4 x ESC Motor
• 1 x 2-3 Cell Battery Charger
• 1 x 2200 mAh Lipo Battery
• 1 x Fly Sky FS-CT6B 6ch 2.4GHz Transmitter & Receiver
• 1 x APM 2.8 Flight Controller (Without Compass)
• 1 x XT60 Male Connector
• 4 x Propellor (2CW, 2CCW )

Specifications:
