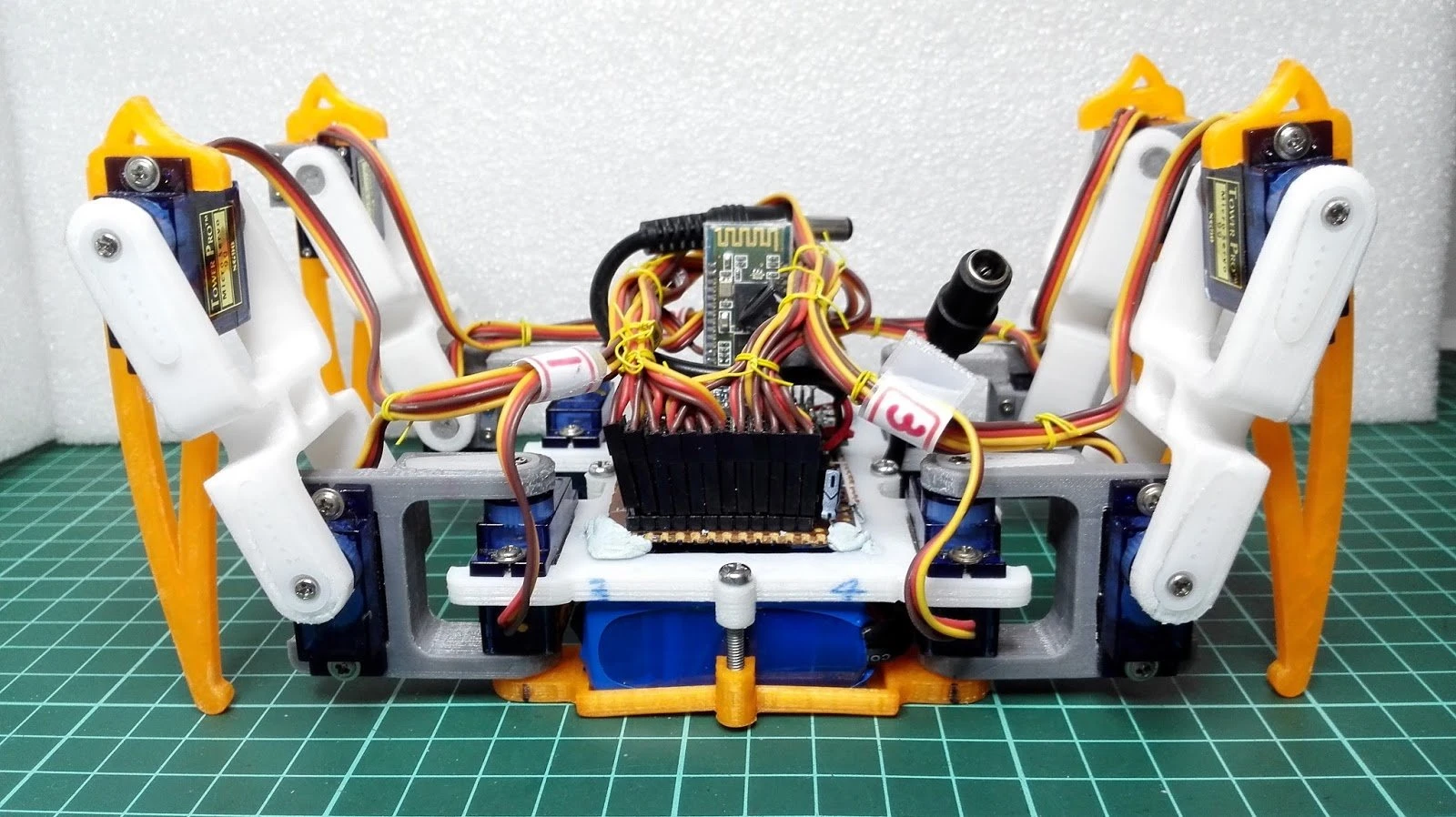

A Spider Quadruped Robot is a four-legged walking robot inspired by the locomotion of spiders and other arachnids. It uses articulated legs with multiple joints to achieve stable walking, climbing, and maneuvering over irregular surfaces. This robot demonstrates advanced kinematics and biomimicry principles, making it ideal for robotics research, education, and mechanical automation projects.

Key Features

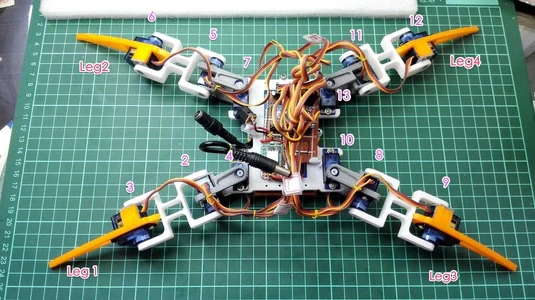

1. Four-Legged Walking Mechanism

Each leg typically contains:

1. 3 Degrees of Freedom (DOF)
2. Coxa (hip – horizontal rotation)
3. Femur (upper leg – lift)
4. Tibia (lower leg – extension)

→ Total: 12 DOF quadruped, offering smooth, spider-like motion.

2. Smooth and Stable Gait Patterns

Robot can perform:

1. Forward walking
2. Backward walking
3. Side walking
4. Turning in place
5. Crab-walk movement
6. Diagonal gait
7. Static and dynamic gait modes

3. Fully 3D-Printed Body (optional)

1. Lightweight PLA/PETG components
2. Modular leg segments
3. Replaceable joints
4. Customizable body shape
5. Mounting slots for sensors & microcontroller

4. Precision Motion Control

Uses:

1. MG996R / MG995 / DS3218 high-torque servos
2. PCA9685 servo driver for stable multi-servo control
3. Arduino Mega / ESP32 / Raspberry Pi for processing
4. Power distribution for 12 heavy servos

5. Intelligent Behavior (optional upgrades)

1. Ultrasonic sensor for obstacle detection
2. MPU6050 IMU for balance
3. Camera / ESP32-CAM for vision
4. Wi-Fi or Bluetooth remote control
5. AI-based walking correction or gesture control

6. Payload Capacity

Due to high-torque servos, it can carry:

1. Small camera
2. Sensors
3. Lightweight tools
4. LED modules

Technical Overview

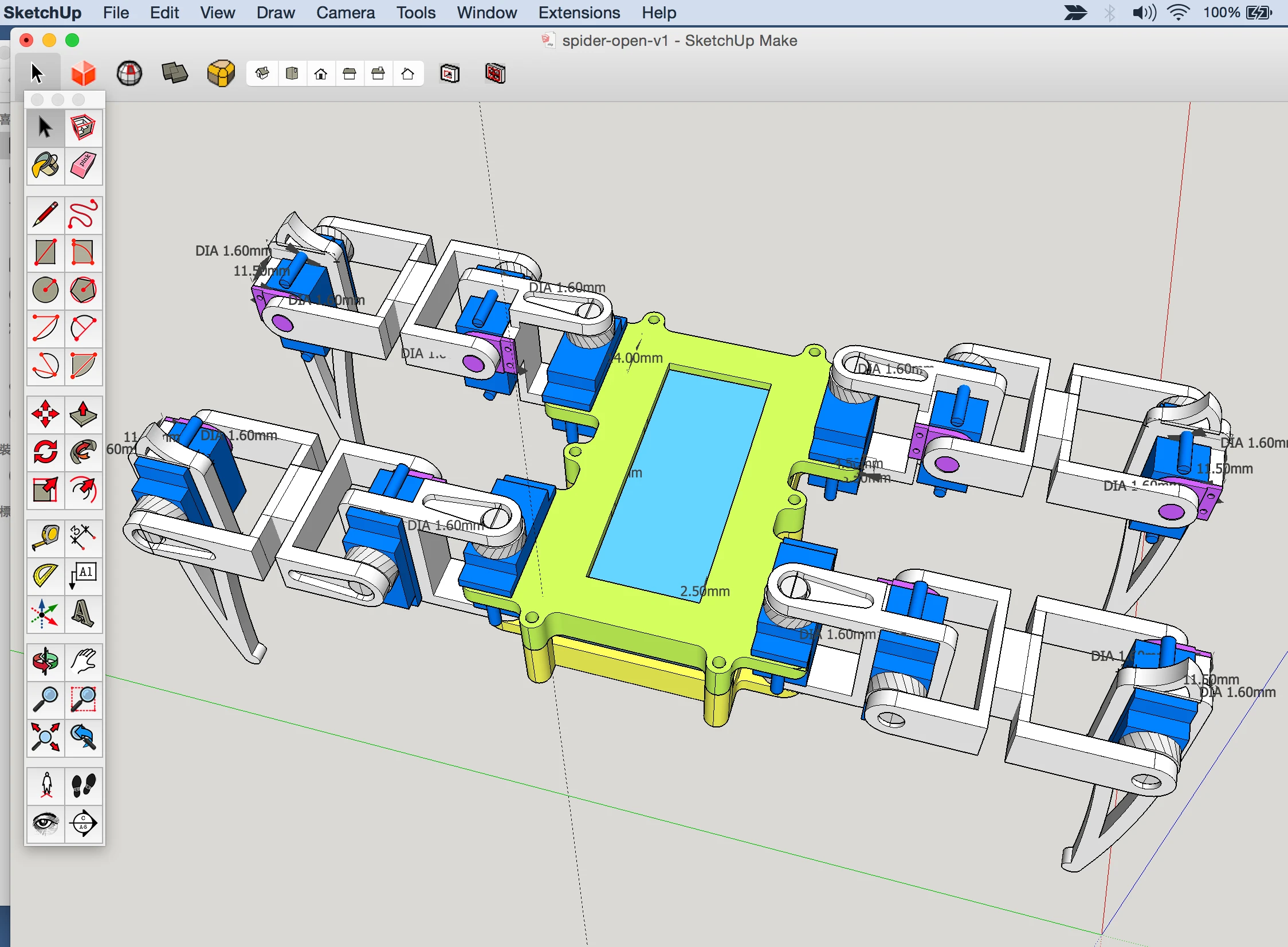

🔩 Mechanical Structure

1. Torso frame (central body)
2. 4 legs with 3 DOF each
3. Ball-joint-like movement using servo horns
4. Strong servo housings to avoid wobble
5. Rubber feet for traction

🔌 Electronics

1. Microcontroller: Arduino Mega or ESP32
2. Servo controller: PCA9685 (16-channel)
3. Battery:
4. 2S/3S LiPo or
5. High current 5V–6V BEC
6. Sensors (optional):
7. Ultrasonic HC-SR04
8. IMU (MPU6050)
9. ESP32-CAM

🎮 Control Options

1. Manual: Bluetooth app
2. Web-based: Wi-Fi control (ESP32)
3. Autonomous: sensors for navigation
4. Voice controlled (optional)
5. Gesture controlled using MPU + glove

🧪 Applications

1. Robotics education & engineering projects
2. Bionic locomotion research
3. Entertainment robots / animatronics
4. Hexapod/quadruped gait study
5. Exploration in uneven surfaces
6. Advanced Arduino/ESP32 training
7. School/college major project

🛠 Advantages

1. Highly stable design
2. Smooth and natural walking style
3. Fully customizable
4. Supports additional sensors
5. Great for learning multi-servo control
