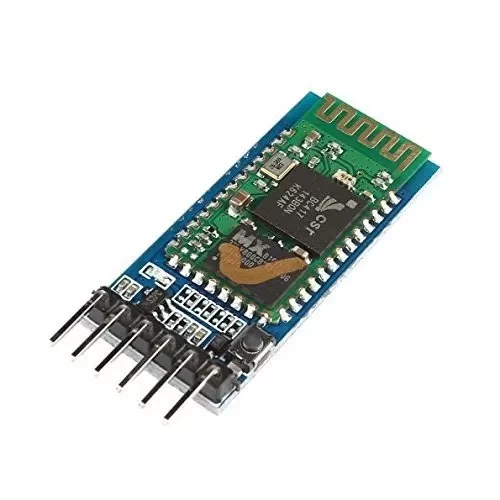

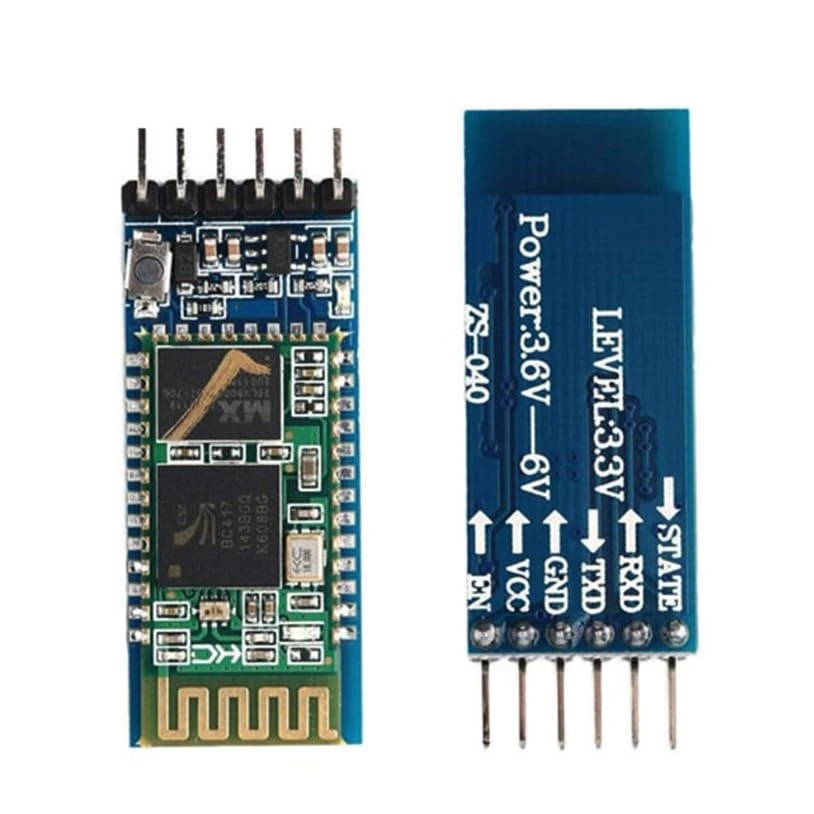

HC05 6 Pin Wireless Serial Bluetooth Module

0 Orders 0 Wish listed

₹305.00 ₹259.00

Qty
Total price:
  ₹305.00

Detail Description

To set Wireless Serial Communication, the HC-05 Bluetooth Module is the most demanding and popular due to its low price and extremely high features. This module can be used in Master or Slave Mode and is easily switchable between these two modes, By default Slave mode is configured. Modes can be changed using AT Commands. The slave mode in HC-05 cannot initiate a connection to another Bluetooth device but can accept connections. The master mode can initiate a connection to other devices.

Features:

  1. Profiles: Bluetooth serial port Profile
  2. Bluetooth protocol: Bluetooth Specification v2.0+EDR
  3. Frequency: 2.4GHz ISM band
  4. Modulation: GFSK(Gaussian Frequency Shift Keying)
  5. Emission power: ≤4dBm, Class 2
  6. Sensitivity: ≤-84dBm at 0.1% BER
  7. Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps
  8. Security: Authentication and encryption
  9. Power supply: +3.3VDC 50mA
  10. Working temperature: -20 ~ +75Centigrade
  11. Dimension: 26.9mm x 13mm x 2.2 mm

 Applications:

  1. Embedded Projects
  2. Industrial Applications
  3. Computer and portable Devices
  4. GPS receiver

Packages Include:

1 x HC05 6 Pin Wireless Serial Bluetooth Module
