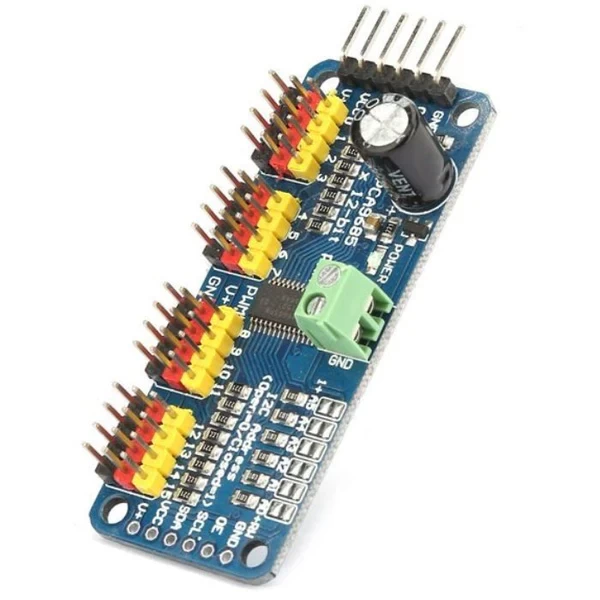

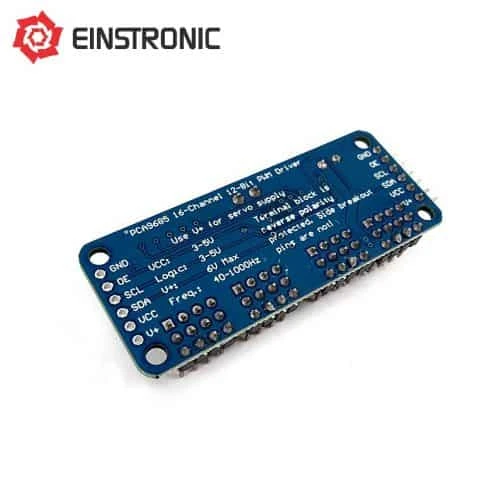

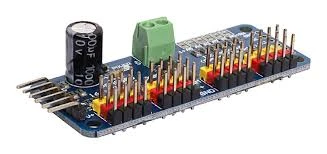

PCA9685 16 Channel Servo Motor Driver(Soldered)

This is a 16-channel 12-bit PWM/Servo Driver – I2C interface – PCA9685. You want to make a cool robot, maybe a hexapod walker, or maybe just a piece of art with a lot of moving parts. Or maybe you want to drive a lot of LEDs with precise PWM output. Then you realize that your microcontroller has a limited number of PWM outputs! What now? You could give up OR you could just get this handy PWM and Servo driver breakout. Programmable fuzzy group (dim) / Flashing LED brightness independent mixed with 1MHz Fast-mode Plus is compatible with high drive capability has 30mA on the SDA I2C bus interface to drive a highly capacitive bus. Each LED output can be achieved from the fully closed (the default) to 4096 (12) between the maximum brightness and linear programmable brightness. Software programmable open-drain LED output selection (the default is a push-pull) of 16 push-pull outputs (at 5V 25mA sink can absorb and provide 10mA current draw), no input function. The programmable output state is in response to an order to change or stop to simultaneously update all outputs or by-byte (byte-by-byte) update output (default is “Stop command to change”). Effective low output enables input pin when the pin is high, the LED output can be programmed to 0,1 or tri-state (high impedance power-on default).

Features :

1. Driver IC PCA9685
2. Length 62mm
3. Height 15mm
4. Width 25mm
5. Weight 10gm

Package Includes:

1 x PCA9685 16 Channel Servo Motor Driver(Soldered)
