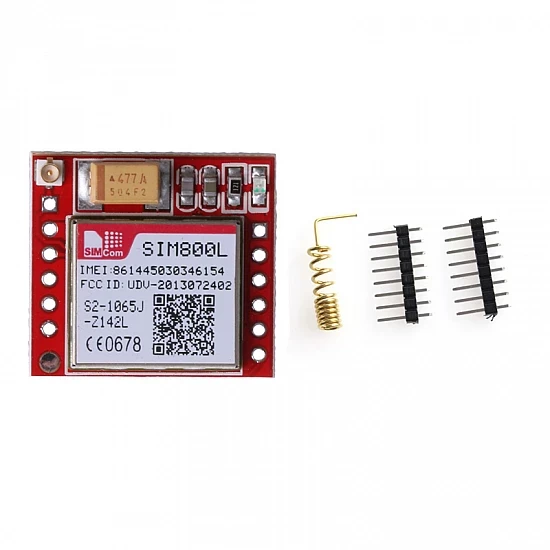

SIM800L GPRS GSM Module

The SIM800L is a micro SIM low-cost GSM/GPRS Development Module. The Module supports TTL communication and hence can easily communicate with Microcontrollers without the need for additional data converters like MAX232. The module also supports an antenna with an IPX connector. SIM800L module can be used to make a cell, receive a call, send and receive text messages, connecting to the internet through GPRS, TCP/IP, etc. Moreover, the module supports a quad-band GSM/GPRS network, so it can operate globally. The SIM800L GPRS GSM Module is compact and hence can be directly used on final Designs. The on-board LED indicates the connection status of the Board, when there is no signal the LED flashes quickly, and when a signal is established it flashes slowly.

Features :

• Micro SIM Card
• Supports A-GPS
• Supports Real-Time Clock
• Quad-band 850/900/1800/1900MHz
• GPRS multi-slot class12 connectivity: max. 85.6kbps(down-load/up-load)
• GPRS mobile station class B
• Controlled by AT Command (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
• Supply voltage range 3.4V ~ 4.4V
• Supports 3.0V to 5.0V logic level
• Low power consumption, 1mA in sleep mode

Package Includes :

1 x SIM800L GPRS GSM Module.
