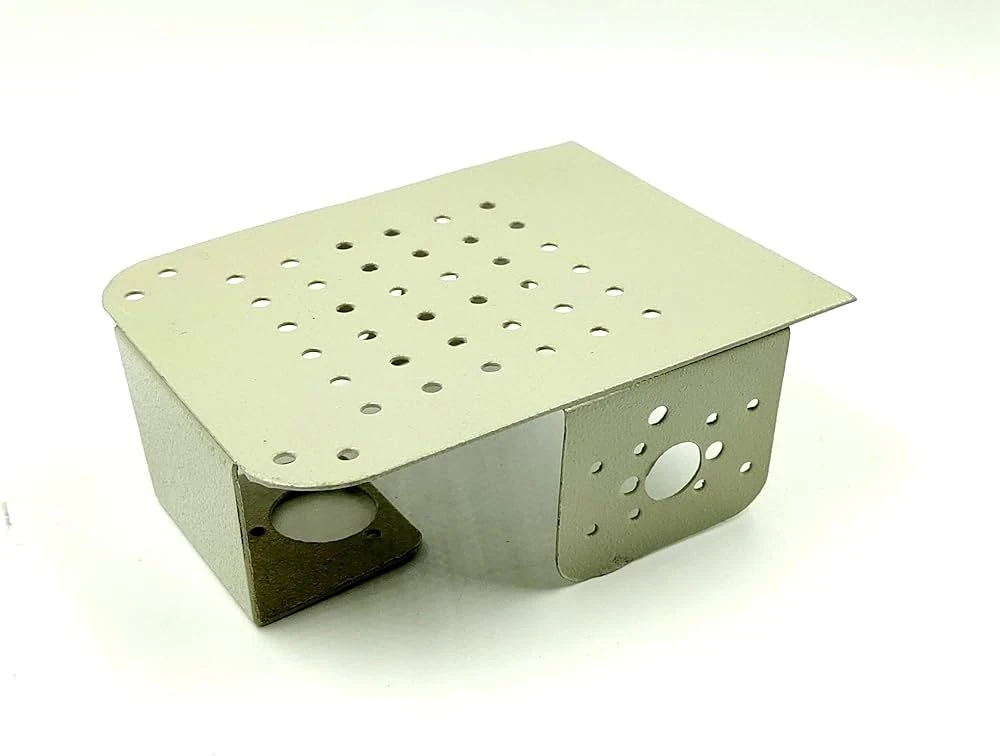

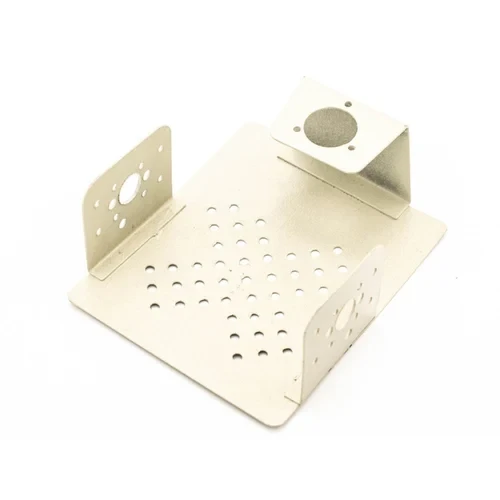

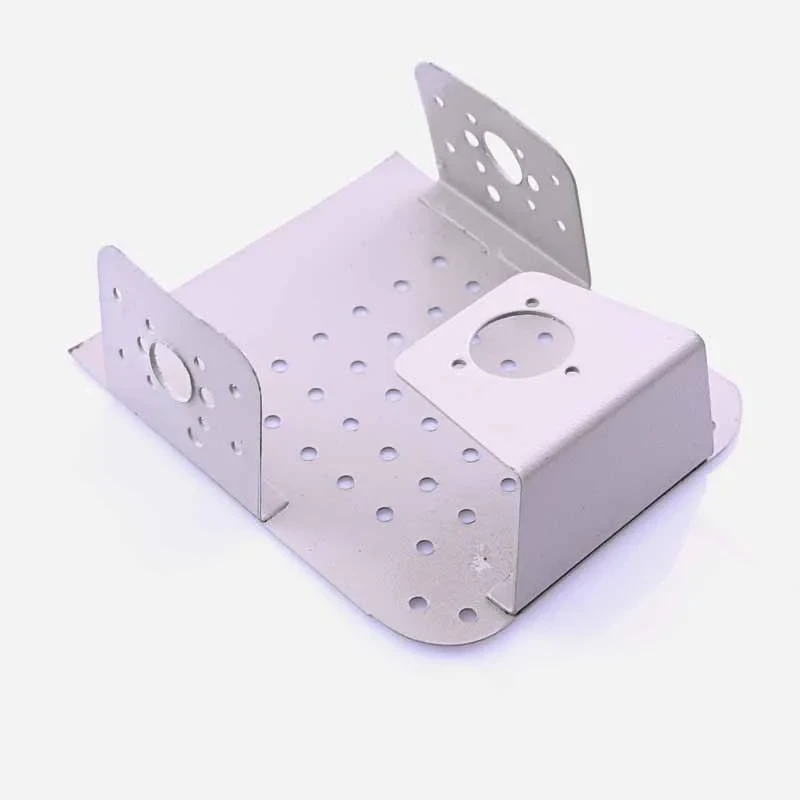

2 Wheel Metal Chassis

0 Orders 0 Wish listed

₹106.00 ₹90.00

Qty

Total price:

₹106.00

Overview
Reviews

Detail Description

The chassis offers versatility for mobile robots, configurable in either skid steer or differential setups. With perforated holes for easy component mounting, it serves as a sturdy base to arrange motors, sensors, and wheels. The 2 Wheel Drive Gray Chassis provides flexibility, usable in skid steer or differential modes. Featuring perforated holes for hassle-free component mounting, it forms the robust backbone of mobile robots, facilitating the arrangement of motors, sensors, and wheels according to specific project requirements.

Features :

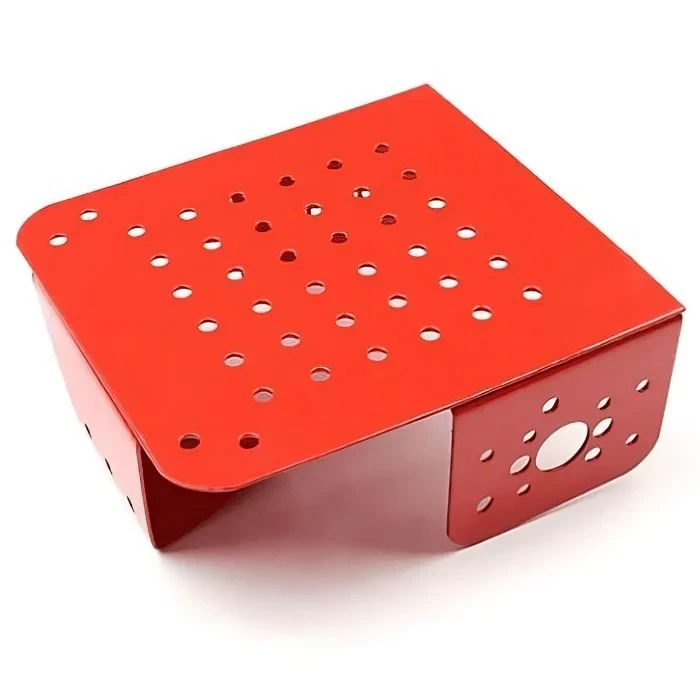

Available in two color red & grey ( We will ship randomly)
Many perforated holes have given for easy attachment of the development board and sensors
Center Shaft gear motor and side shaft gear motor can be used for this chassis.
Dimensions: 193 x 102 x 46 (LxWxH)
Weight: 270 gm.
Material: Metal sheet.
Colour: Grey/Red
Sheet Thickness: 1.5 mm.
Many perforated holes have given for easy attachment of development board and sensors.

Package Includes :

1 - 2 Wheel Metal Chassis
