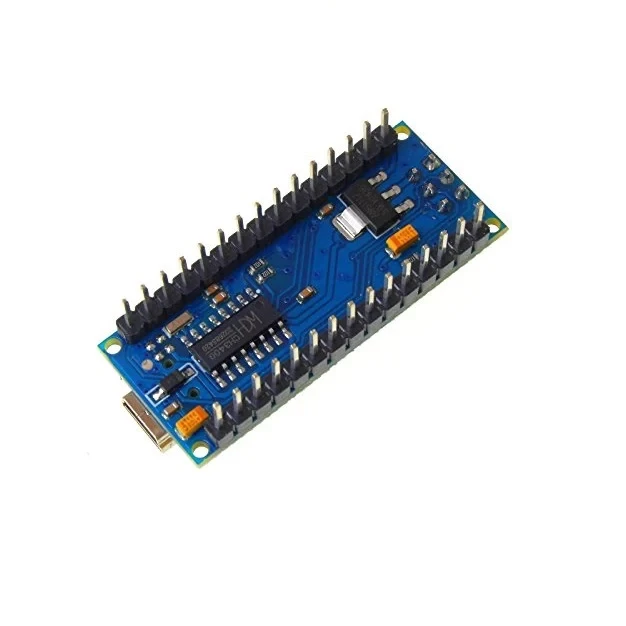

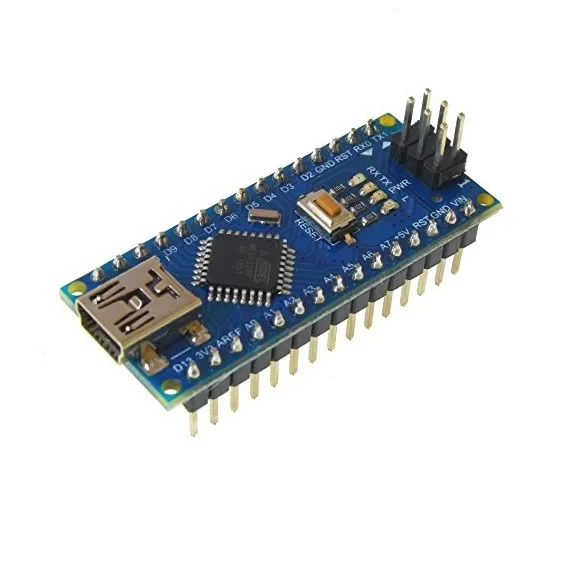

Arduino Nano Board - Soldered

The Arduino Nano Board Soldered Nano Board R3 Chip is based on the famous Arduino platform and does all the functions of Uno but with a smaller footprint. Nano CH340 Soldered Board R3 Chip without USB Cable is vital for your small project where you don’t need much of a pin-outs but the small size is very important to make it look good. The Nano equips a low-cost USB-Serial Chip that makes it less in price than the Nano with FTDI USB-Serial Chip used on older versions of Arduino Nano. The Nano is a small, complete, and breadboard-friendly board based on the ATMega38 (Arduino Nano R3). It has more or less the same functionality as the Arduino Mega but in a different package. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one. The Nano can be powered via the mini-USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected as the highest voltage source. The size of Nano V3.0 is only 43 mm x 18 mm; it comes with 6 PWM I/O from a total of 14 digitals I/O, 8 analog inputs, 16Mhz clock speed, and 32kB of flash memory.

Features:

1. Operating Voltage (logic level): 5V
2. With a Soldered Connector
3. 8 analog input ports: A0 ~ A7
4. 14 Digital input/output ports: TX, RX, D2 ~ D13
5. 1 pair of TTL level serial transceiver ports RX / TX
6. Using Atmel Atmega328P-AU MCU
7. There is a bootloader installed in it
8. Standard 0.1” spacing DIP (breadboard friendly).
9. Manual reset switch.
10. Green (TX), red (RX), and orange (L) LED.
11. +5V to AREF jumper.
12. Auto-sensing/switching power input.
13. Small mini-B USB for programming and serial monitor (cable not included).
14. ICSP header for direct program download.
15. Standard 0.1” spacing DIP (breadboard friendly).
16. Manual reset switch.

Package Includes:

1 x Arduino Nano Board - Soldered
