Arduino UNO R3 DIP Compatible Development Board

0 Orders 0 Wish listed

₹532.00 ₹451.00

Qty

Total price:

₹532.00

Overview
Reviews

Detail Description

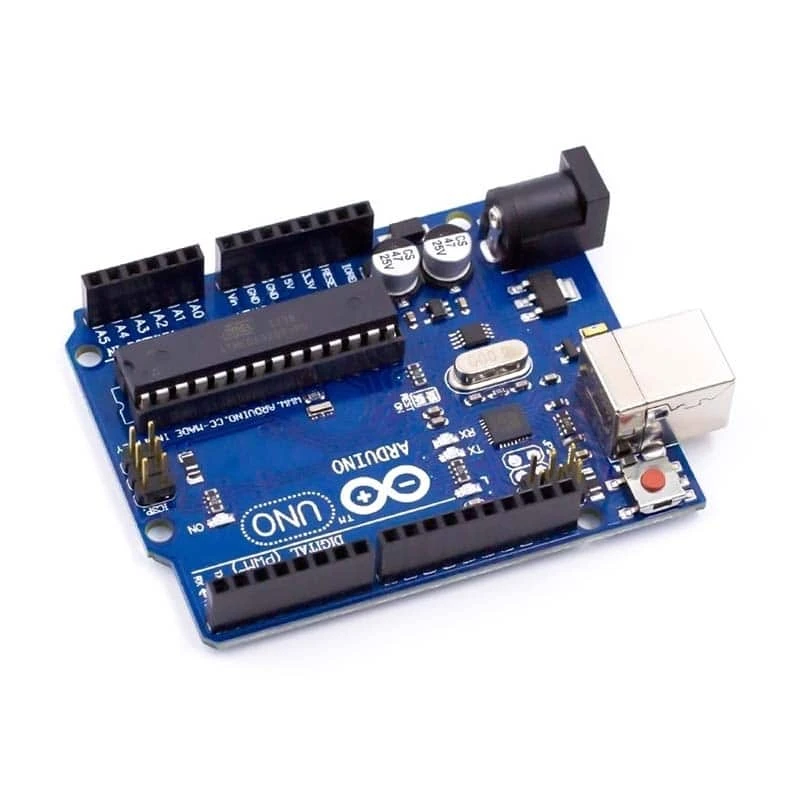

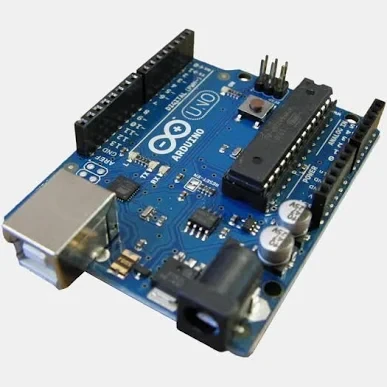

The Arduino Uno R3 Compatible Board is a microcontroller board which is based on the ATmega328. Arduino Uno has 14 digital input or output pins(where 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button. It has everything needed to support the microcontroller, you need to simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.

Features:

Easy application programming using open source IDE
Easy to learn Microcontroller using Arduino boards.
Easy application programming using open source IDE
Ready Library for most of the sensors and application modules.
More information on www.arduino.cc

Specification:

Microcontroller Chip	ATmega328
Analog I/O Pins	6
Digital I/O Pins	14 (of which 6 provide PWM output)
DC Current per I/O Pin	40 mA
DC Current for 3.3V Pin	50 mA
SRAM	2 KB
EEPROM	1 KB
Flash Memory	32 KB of which 0.5 KB used by bootloader
Clock Speed	16 MHz
Operating Voltage	5V
Input Voltage	7-12V
Input Voltage (limit)	6-20V
