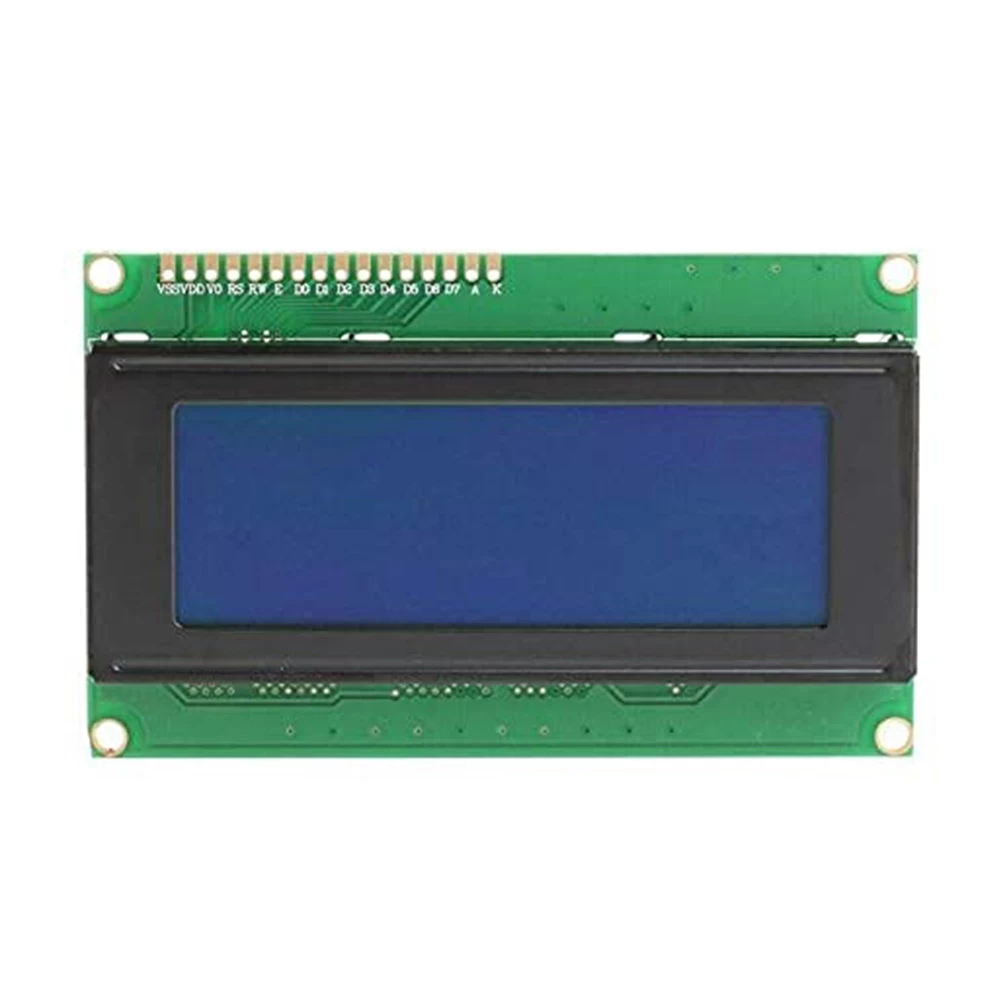

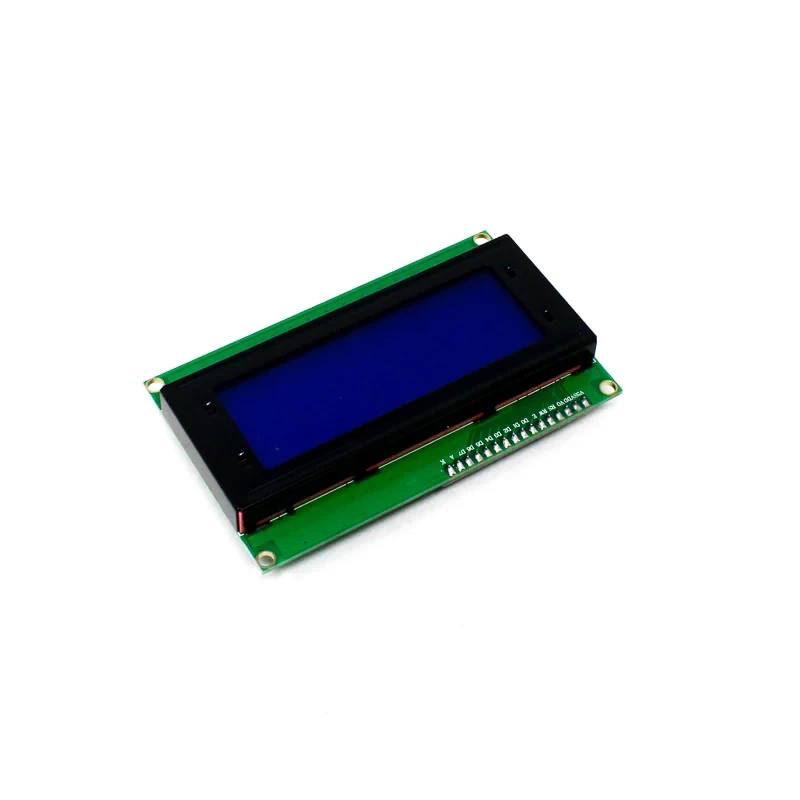

4 Lines LCD Display with IIC/I2C Interface.

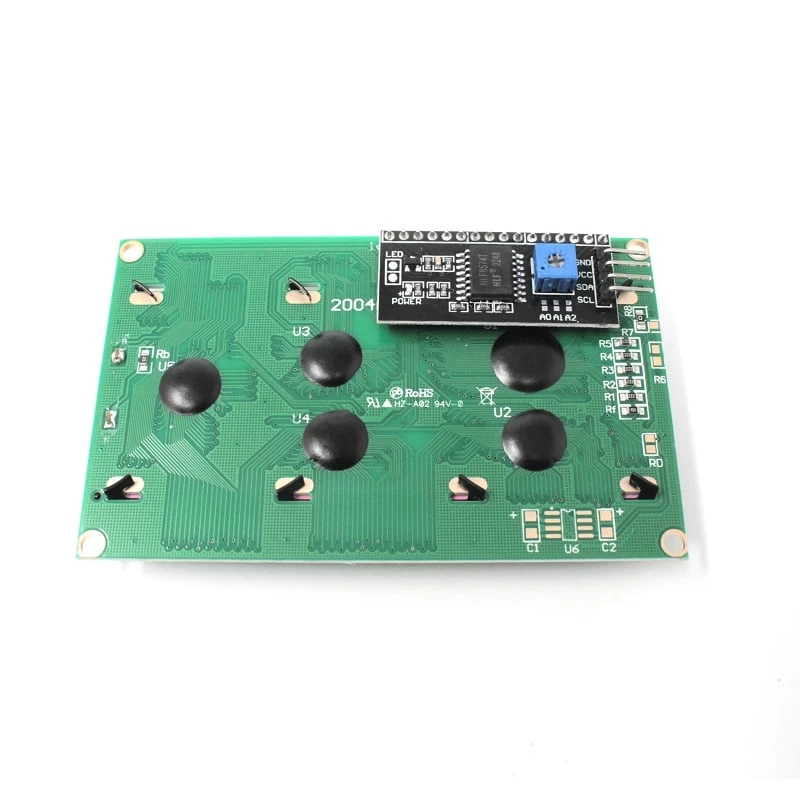

If you want to add some visual output to your Arduino projects, you’ll need a display If you need only a little to display, the LCD2004 Parallel LCD Display with IIC/I2C interface is a quite good solution. This Display provides a simple and cost-effective solution for adding a 20×4 White on RGB Liquid Crystal Display to your project. The display is 20 characters by 4 lines display has a very clear and high-contrast white text upon a blue background/backlight. This is a great blue backlight LCD. It is fantastic for Arduino-based projects. This Display with a Blue Backlight is very easy to interface with Arduino or Other Microcontrollers. This Arduino display overcomes the drawback of LCD2004 Parallel LCD Display in which you’ll waste about 8 Pins for the display to get working. Luckily in this product, an I2C is directly soldered right onto the pins of the display. So all you need to connect are the I2C pins, which show a good library and little coding. The I2C is a type of serial bus developed by Philips, which uses two bidirectional lines, called SDA (Serial Data Line) and SCL (Serial Clock Line). Both must be connected via pulled-up resistors. The usage voltages are standard as 5V and 3.3V.

Features :

1. Model: LCD2004
2. Interface: I2C
3. Interface Address: 0x27
4. Character Color: White
5. Backlight: Blue
6. Supply voltage: 5V
7. Dimensions(L x W x H) mm.: 98 x 60 x 14

Package Includes :

1 x  4 Lines LCD Display with IIC/I2C interface
