TTP 223 Touch Key Switch Sensor Module

(0) 0 Reviews 0 Orders 0 Wish listed

₹12.00 ₹14.00

Quantity :

Total price :

(Tax : )

Overview
Reviews

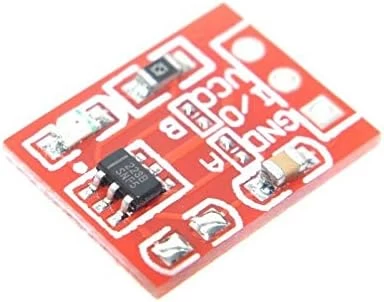

Capacitive type touch jog switch module The module is based on a touch detection IC (TTP223). Under normal conditions, the module outputs low, low-power mode to mode; with a touch of a finger when the corresponding position, the module will output high, and the mode is switched to fast mode; when for 12 seconds without touching, the mode and switch to low power mode. The module can be installed in such plastic, glass surface non-metallic materials, in addition to the thin paper (non-metallic) covering the surface of the module, as long as the correct location the touched, you can make hidden in the walls, and other parts of the desktop button. This module allows you to remove the troubles of conventional push-type buttons.

Trigger setting mode:

(1- > Short ; 0- > No Short)

AB=00: No-lock High TTL level output;

AB=01: Self-lock High TTL level output;

AB=10: No-lock Low TTL level output;

AB=11: Self-lock Low TTL level output;

Features :

IC: TTP223; Jog type: the initial state is low, high touch, do not touch is low (a similar touch of a button feature) Low power consumption
Power supply: 2 ~ 5.5V DC; Positioning holes: 4 M2 screws positioning hole diameter is 2.2mm, the positioning of the module is easy to install, to achieve inter-module combination;
Touch surface can be used as positive and negative, and can replace the traditional touch of a button
Control Interface: A total of three pins (GND, VCC, SIG), GND to ground, VCC is the power supply, SIG digital signal output pin;
Touch area: Similar to a fingerprint icon inside the area, you can touch the trigger finger.
onboard TTP223 touch capacitive touch sensor IC
on-board-level status indicator
working voltage: 2.0V-5.5V
PCB board size: 15 (mm) x 12 (mm) x 7.2 (mm)

Package Includes :

1x TTP 223 Touch Key Switch Sensor Module
